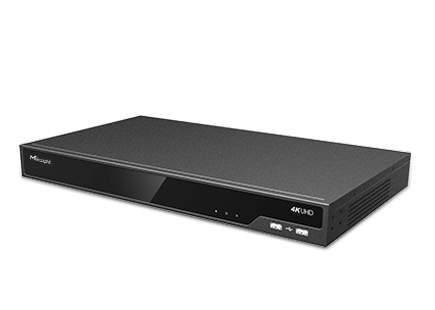

64-Channel 4K H.265 NVR with 8 HDD Bays
The Milesight MS-N8064-G is a 64-channel 4K network video recorder with 8 hard drive bays, RAID support and dual Gigabit networking, built for medium to large surveillance systems.
Records up to 64 IP cameras at resolutions up to 12MP, with 320 Mbps of incoming bandwidth.
Eight 3.5″ SATA bays (up to 10 TB each) with RAID 0/1/5/6/10, N+1 hot spare and ANR.
Two HDMI outputs (4K on HDMI 1) and two VGA outputs for local monitoring.
| Channels | 64 IP cameras |
|---|---|
| Recording Resolution | Up to 12MP |
| Bandwidth | 320 Mbps in / 256 Mbps out (200 Mbps with RAID enabled) |
| Video Output | 2 × HDMI (up to 3840 × 2160 on HDMI 1); 2 × VGA |
| Synchronous Playback | Up to 64 channels (e.g. 6 × 8MP, 9 × 5MP, 24 × 1080p at 30 fps) |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Storage | 8 × 3.5″ SATA, up to 10 TB each; 1 × eSATA |
| RAID | RAID 0, 1, 5, 6, 10; N+1 hot spare |
| Network | 2 × RJ45 10/100/1000 Mbps |
| Interfaces | 1 × USB 3.0, 2 × USB 2.0; audio 1 in / 2 out (RCA); alarm 16 in / 4 out; RS-485 (PTZ, keyboard), RS-232 |
| Smart Functions | VCA (region entrance/exit, line crossing, loitering, people counting, object left/removed), ANPR, ANR |
| Compatibility | ONVIF, API; Milesight MS-K01 keyboard |
| Power | 100–240 V AC, 50/60 Hz; ≤ 35 W without HDD |
| Environment | –10 °C to +55 °C (14 °F to 131 °F); 10–90% RH |
| Form Factor | 2U rack mount |
| Dimensions | 440 × 420 × 88.2 mm (17.32 × 16.54 × 3.47 in) |
