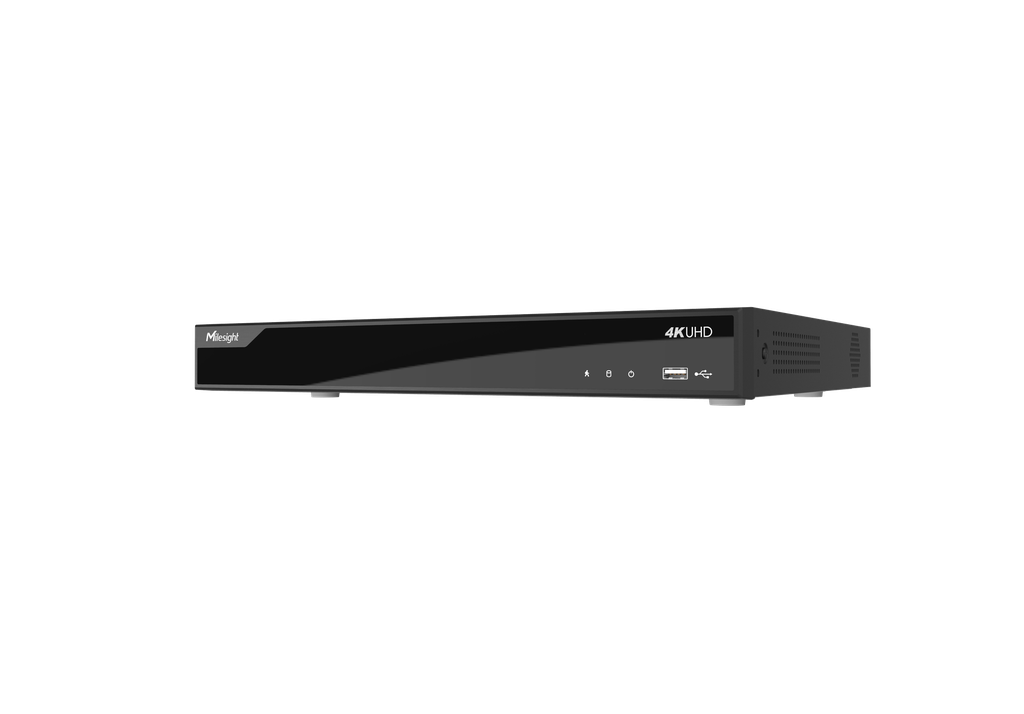

8-Channel 4K PoE NVR with 8 PoE Ports and 2 HDD Bays
The Milesight MS-N5008-NPE is an 8-channel 4K PoE network video recorder with 8 built-in PoE ports, two hard drive bays and plug-and-play camera setup in a 1U chassis.
Eight PoE ports (802.3af/at, up to 200 W total) connect and power cameras with a single cable each.
Two 3.5″ SATA bays support up to 10 TB each for longer retention.
Watch live and recorded video on a 4K HDMI monitor or a VGA display.
| Channels | 8 IP cameras |
|---|---|
| Recording Resolution | Up to 8MP |
| Bandwidth | 160 Mbps in / 160 Mbps out |
| Video Output | 1 × HDMI (up to 3840 × 2160); 1 × VGA |
| Storage | 2 × 3.5″ SATA, up to 10 TB each |
| PoE Ports | 8 × RJ45 10/100 Mbps; IEEE 802.3af/at; ≤ 200 W total |
| Network | 1 × RJ45 10/100/1000 Mbps |
| Interfaces | 2 × USB 2.0; audio 1 in / 1 out (RCA); alarm 4 in / 1 out |
| Smart Functions | VCA (region entrance/exit, line crossing, loitering, people counting, object left/removed), ANPR, ANR |
| Compatibility | ONVIF, API; Milesight MS-K01 keyboard |
| Power | 100–240 V AC, 50/60 Hz; ≤ 7.5 W without HDD or PoE load |
| Environment | –10 °C to +55 °C (14 °F to 131 °F); 10–90% RH |
| Form Factor | 1U rack mount |
| Dimensions | 380 × 317.6 × 51.8 mm (14.96 × 12.50 × 2.04 in) |
| Weight | 2.7 kg (5.95 lbs) |
