Mini 8-Channel 4K H.265 NVR

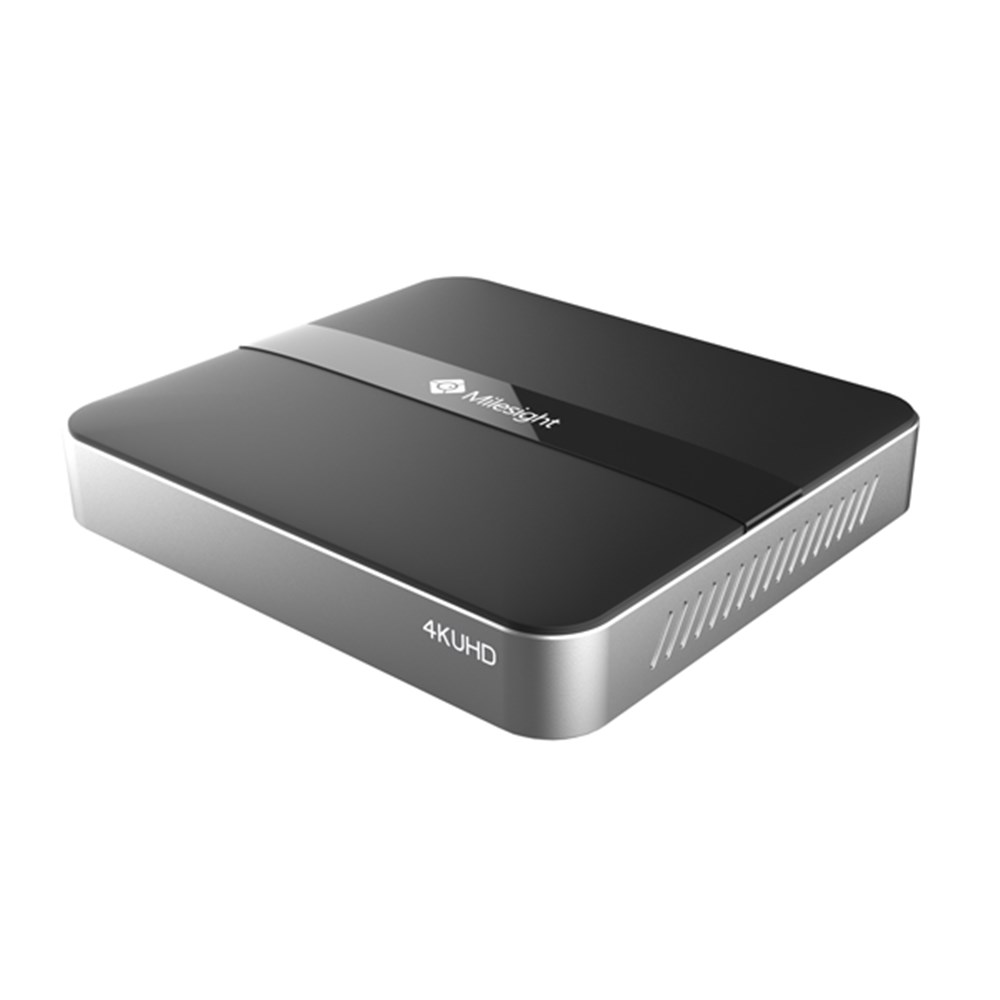

The Milesight MS-N1008-UC is a compact 8-channel 4K network video recorder with one hard drive bay, built-in video analytics and a 4K HDMI output, an easy fit for small sites.
Records up to 8 IP cameras at resolutions up to 8MP, with 80 Mbps of incoming bandwidth.
View live and recorded video on a 4K monitor through the HDMI output, with audio.
A small 220 × 200 mm unit with one 3.5″ SATA bay (up to 10 TB) and a 12 V DC supply.
| Channels | 8 IP cameras |
|---|---|
| Recording Resolution | Up to 8MP |
| Bandwidth | 80 Mbps in / 80 Mbps out |
| Video Output | 1 × HDMI, up to 3840 × 2160 |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Storage | 1 × 3.5″ SATA, up to 10 TB |
| Network | 1 × RJ45 Ethernet |
| Interfaces | 2 × USB 2.0 |
| Smart Functions | VCA (region entrance/exit, line crossing, loitering, human detection, people counting, object left/removed), ANR |
| Compatibility | ONVIF, API; Milesight MS-K01 keyboard |
| Power | 12 V DC adapter |
| Environment | –10 °C to +55 °C (14 °F to 131 °F); 10–90% RH |
| Dimensions | 220 × 200 × 43.6 mm (8.66 × 7.87 × 1.72 in) |
