AI Dual-Sensor 180° Panoramic Network Camera (2 × 4MP)

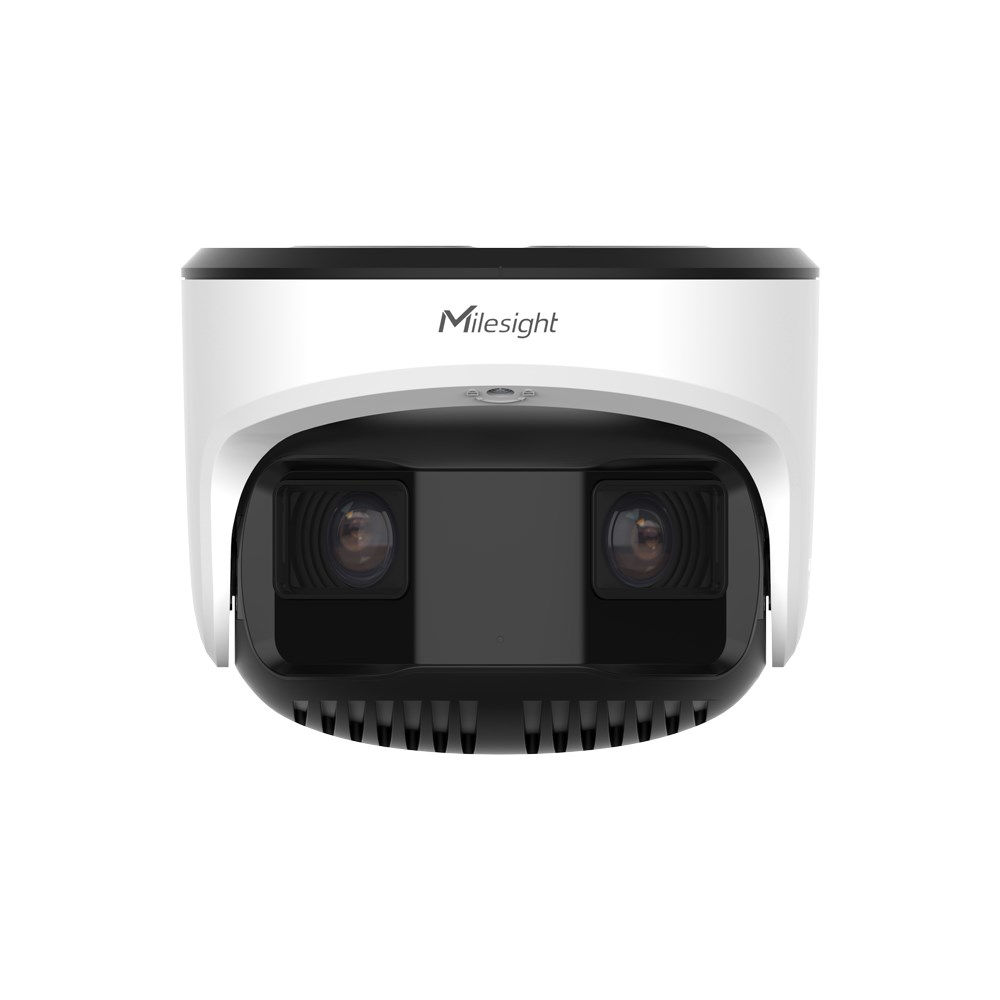

The Milesight MS-C8477-HPG1 is a AI Dual-Sensor 180° Panoramic network camera (2 × 4MP) with a 4 mm lens, built-in AI video analytics and an IP67/IK10-rated housing.
Built-in AI detects and classifies people and vehicles, with intrusion, line crossing, loitering and face detection.
A wide-angle lens covers a large area with a single camera, reducing blind spots.
IP67 and IK10 rated.
| Image Sensor | Dual 1/1.8″ progressive scan CMOS |
|---|---|
| Max Resolution | 5084 × 1520 stitched panorama (2 × 4MP) at 25 fps |
| Lens | 4 mm @ F1.6 |
| Field of View | H 180°, V 50° |
| Min. Illumination | Color 0.002 Lux @ F1.6; 0 Lux with IR |
| WDR | 140dB Super WDR |
| IR Distance | Up to 30 m (98 ft) |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| AI Analytics | Intrusion, Line crossing, Loitering, Face detection, People counting, Object counting, Heat maps |
| Interfaces | 1 × RJ45 10/100 Ethernet; 1* Audio Out; alarm 1 in / 1 out |
| Storage | microSD card up to 1 TB |
| Power | PoE (802.3at) or 12 V DC; max 12 W |
| Environment | IP67, IK10 |
| Dimensions | Ø 160 × 127.5 mm (Ø 6.30 × 5.02 in) |
| Weight | 1.5 kg (3.31 lbs) |
| Compliance | ONVIF Profile G/M/S/T |
