16-Port Cloud Managed PoE Switch with 250 W PoE Budget
The Lysora LCS-16GS-P is a high-performance, cloud-managed 16-port Gigabit PoE+ switch engineered for the demands of modern surveillance systems, enterprise networking, and wireless infrastructure.
Seamlessly manage your network via the Lysora Cloud Portal, local web UI, or dedicated mobile app for real-time insights and control.
Smart monitoring automatically reboots PoE ports if no traffic is detected, ensuring your critical devices stay connected 24/7.
Extend your reach up to 250m (820 ft) for remote device connections, perfect for expansive facilities and large-scale deployments.

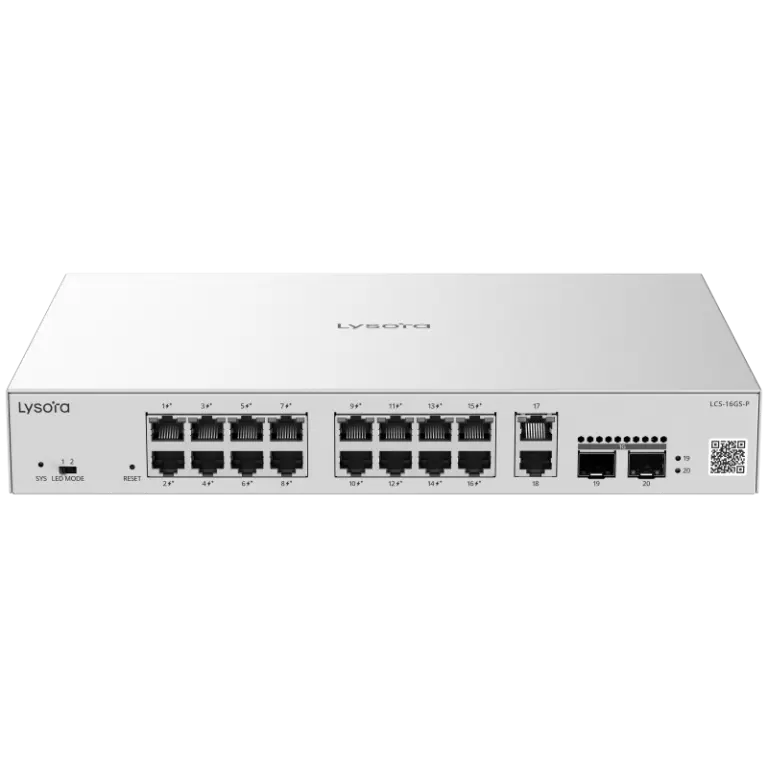

| Port Configuration | 16 × Gigabit RJ45 PoE/PoE+ ports, 2 × Gigabit RJ45 Uplink ports, 2 × 1G SFP Uplink ports |
|---|---|
| PoE Power Budget | 250W Total; IEEE 802.3af/at (PoE+) compliant |
| Switching Capacity | Up to 40 Gbps (non-blocking) |
| Forwarding Rate | 29.7 Mpps |
| Network Security | DHCP Snooping, Storm Control, and Loop Prevention |
| VLAN Support | IEEE 802.1Q for advanced network segmentation |
| Dimensions | 300 × 223 × 43.6 mm (11.81 × 8.78 × 1.72 in) |
| Weight | 2.12 kg (4.67 lbs) |
| Reliability | 200,000-hour MTBF with enhanced surge and ESD protection |
| Compliance | NDAA Compliant |
